How to update the VMware Tools package on ESXi

VMware Tools (vmtools) are periodically updated to include improved drivers, bug fixes, and better OS support. With vSphere 6.5, the tools package is now split into two distinct ones, one for Legacy (v10.1) operating systems, some of which are no longer supported by the original vendor and one for current operating systems (v10.0.12). This interesting article, explains why this bifurcation was required and what it entails.

On this blog, you’ll find a few articles covering vmtools. In particular, I suggest having a look at VMware Tools Troubleshooting on Windows and Learn how to deploy VMware Tools to a Linux Virtual Machine.

Today’s post addresses a question recently submitted by a reader. Upgrading vmtools on a virtual machine is easy. However, how does one go about the business of updating or replacing the actual VMware Tools package on ESXi which is eventually rolled out to the virtual machines residing on it? As it turns out, the process is not that difficult as I explain next.

Note: This latest vmtools 10.1.7 release includes an improved VMXNET3 network driver and added support for new operating systems.

Updating the VMware Tools package on ESXi

The first question we need to ask is where on ESXi are the tools located?

On ESXi 6.5, the vmtools files are located under /vmimages/tools-isoimages or /productlocker as shown. Sometimes you’ll find yourself stuck trying to install vmtools on a VM because of some missing file or similar. In that case, the solution is to copy over the legacy VMware Tools package to the ESXi host or check the VMware site for a VMware Tools installer for the particular guest OS.

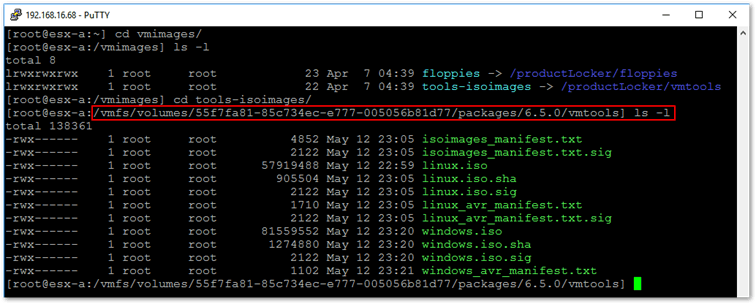

Folder path to VMware Tools package on ESXi 6.5

The second question to is, where do I get the latest updated VMware Tools package from?

The latest vmtools can be downloaded from here. Keep in mind that by the time this post is published, the link may have expired. It could also be the case that a later release of VMware Tools would be available by then. As always, have a look around the VMware website if in doubt.

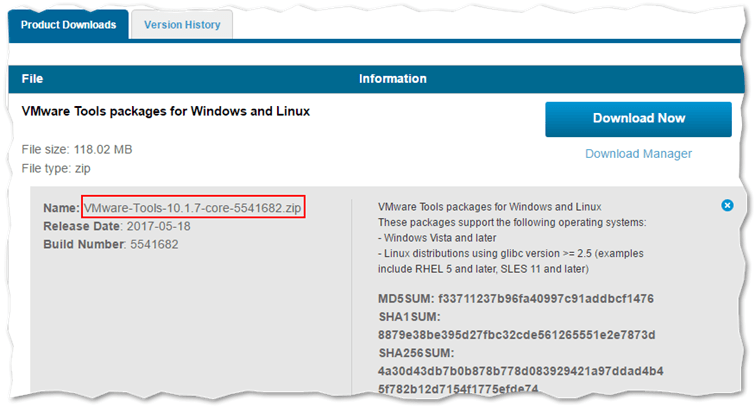

Downloading the VMware Tools package from my.vmware.com

After you download the package, extract the contents to a folder. Using something like WinSCP, connect to the ESXi host and navigate to /vmimages/tools-isoimages on ESXi . This corresponds to the 2nd pane in WinSCP as shown in the next screenshot. Note that the path changes to something similar to /vmfs/volumes/<uuid>/pacjkages/6.5.0/vmtools on account of the first being a symbolic link. In the first pane on the WinSCP UI, change the focus to the folder containing the extracted vmtools package.

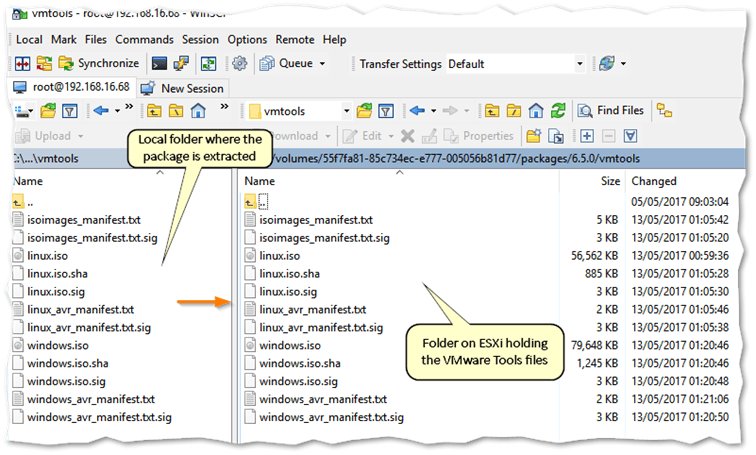

Using WinSCP to transfer the VMware Tools files to ESXi

Create a backup folder under /vmimages/tools-isoimages and copy any existing files to it. This allows you to revert back should you need to. Once you do that, just select all the extracted vmtools files in the first pane and drag them over to the ESXi folder. This simple process is illustrated in this next video.

We then need to verify if ESXi does indeed catch up to the fact that we’ve replaced the old VMware Tools files with new ones. To do this, I’ll go ahead and upgrade a Windows VM that’s running an older version of vmtools (10.1.2), the version that ships out with vSphere 6.5 GA. I’ll then migrate the VM to the ESXi host where vmtools have been replaced with the latest version (10.1.7). If everything goes to plan, the Upgrade Tools VM option should allow me to upgrade VMware Tools on the Windows VM. Additionally, I will also use vSphere Update Manager, since I’m using vCSA 6.5, to run a compliance check which will determine if the change in files is picked up or not. This is all captured in the next video.

As can be seen in the video, vCenter Server immediately detects that the VM has been moved to a host with a more recent release of VMware Tools. Running a compliance scan with Update Manager, also results in a non-compliant VM, in that the version of VMware Tools currently installed does not match that of the package found on the ESXi host.

Before you go ahead and update VMware Tools on ESXi, I would suggest that you first try this out in a testing environment. You should also have a good look at the release notes of the VMware Tools version you wish to upgrade just so you can gauge if it’s worth the hassle and risk, no matter how small.

Wrap Up

VMware Tools are an integral part of any vSphere environment as they enhance the performance of virtual machines and provide added functionality such as host time synchronization and quiesced snapshots. It is therefore important to keep the VMware Tools package up-to-date not only on the virtual machines running it but also on the ESXi hosts pushing it out. Today, I’ve shown you how you can easily replace the existing vmtools package on ESXi with a more current release. Just download, extract and copy over the latest files. It does not get any simpler!
